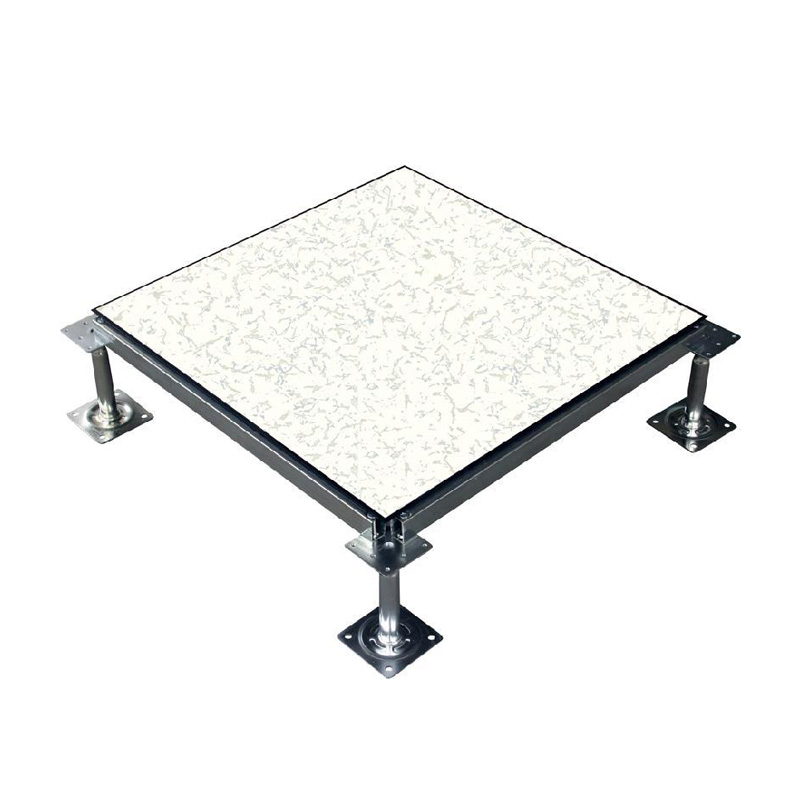

Anti - static floor system is usually composed of floor, beams, brackets, screws, veneer and other main parts. Beams and self-adjustable brackets are bolted together to form a secure lower support system, and floors are embedded in a grid of beams. Surface veneer :PVC plastic veneer, melamine veneer, HPL veneer, ceramic surface. Related accessories are screws, suction cups, wiring boxes and so on.



1. Floor: adopt high-quality alloy cold-rolled steel plate, which is formed by spot welding after stretching. The outer surface is treated by plastic spraying after phosphating, and the inner cavity is filled with foaming filler



2. Beam: all steel floor supporting beams are divided into long beam and short beam, long beam specifications :21 30/32 1173mm, short beam specifications :21 30/32 573mm; Surface galvanized antirust treatment. The bearing capacity of different places of the wall thickness of the beam can also be customized



3. Stents: they are usually divided into standard stents, reinforced stents and super-strong stents. In addition, there are two special purposes of support: slope support, edge support.



4. Other auxiliary accessories include diagonal brace, horizontal tie rod and hoop as auxiliary connecting parts of the bracket. Generally, they are matched with the use of super high and super strong brackets to enhance the stability of floor installation structure. Screw, sucker, cable box, etc BBB 0.

Anti - static floor system is usually composed of floor beams brackets screws veneer and other main parts.



Beams and self-adjustable brackets are bolted together to form a secure lower support system and floors are embedded in a grid of beams.



Surface veneer :PVC plastic veneer melamine veneer HPL veneer ceramic surface. Related accessories are screws suction cups wiring boxes and so on.

Anti - static floor system is usually composed of floor beams brackets screws veneer and other main parts.



Beams and self-adjustable brackets are bolted together to form a secure lower support system and floors are embedded in a grid of beams.



Surface veneer :PVC plastic veneer melamine veneer HPL veneer ceramic surface. Related accessories are screws suction cups wiring boxes and so on.
