This system adopts a static immersion liquid cooling scheme and adopts anhydrous liquid cooling technology. The battery cells are completely immersed in insulation and heat dissipation liquid. By collecting temperature data of the battery cells, the temperature control system controls the cooling and heating output, and adjusts the internal temperature environment of the energy storage system. The battery cell temperature can be controlled within 25 ± 2 ℃, ensuring efficient operation of the battery cells. At the same time, fundamentally avoiding the risk of electrical system short circuits caused by the cooling water or condensate of the refrigeration system itself, thereby avoiding thermal runaway accidents caused by short circuits in the battery pack.

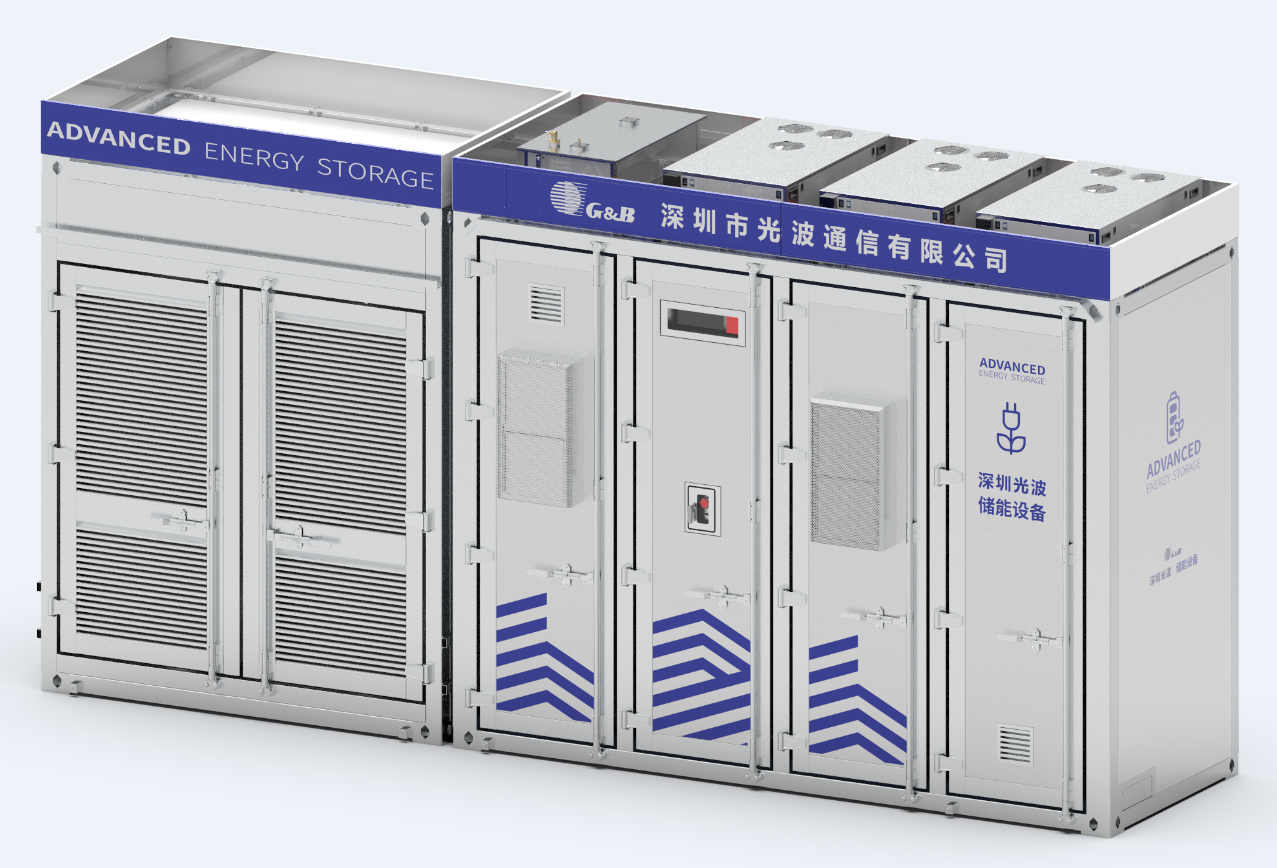

The battery compartment size of the 630KW-1.29MWh static immersion liquid cooled energy storage system is W4000 * D1500 * H3300mm, covering an area of 6 square meters. The PCS compartment covers an area of 3.7 square meters, with a total area of 9.7 square meters. A single battery compartment contains 6 clusters of batteries, with a total of 30 battery packs.
